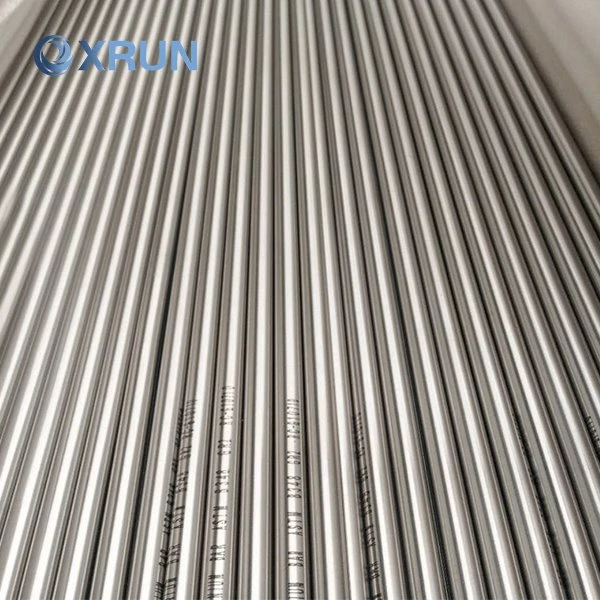

Titanium Beta 21s Bar

Titanium beta 21s bar possess the advantages of lightweight, high strength, and corrosion resistant .XRUN provides a great range of bar sizes across different grades. Grade 21 alloy contains 15% molybdenum, 3% aluminum, 2.7% niobium and 0.25% silicon.

Production process

The electrode is pressed after mixing the titanium sponge and intermediate alloy . Then vacuum plasma welding box is used to weld the electrode to make sure there is no inclusion and external pollution risk. Carrying out three times VAR melting to obtain high clean and uniform ingot is the next step. After that the 5000T High-speed forging equipment is used for several times forging process with large deformation to effectively break the grain. Finally, Titanium Beta 21s Barr is obtained by rolling or extrusion.

The characteristics of Ti

Titanium and titanium alloys not only have high melting point, no magnetism, low coefficient of thermal expansion, high specific strength (the ratio of material strength to density) and specific stiffness (the ratio of material elastic modulus to density) of comprehensive mechanical properties, but also have good corrosion resistance, biological erosion resistance and many other excellent characteristics.

Applications

1. Aerospace
Titanium Beta 21s Bar has high specific strength, good toughness, corrosion resistance, high and low temperature resistance, radiation resistance and other properties, widely used in aircraft, aeroengines, rockets, missiles, satellites, spacecraft and other aerospace equipment. According to the data, in 2020, the total sales volume of China's major titanium production enterprises in the aerospace field was about 17228 tons, with a year-on-year growth rate of 36.73%, and a compound growth rate of 16.94% compared with the sales volume of 3603 tons in 2010
And application of aircraft titanium alloy materials parts with landing gear parts, frame, beam, the fuselage skin, heat shield, etc., aircraft engine titanium alloy materials used parts have compressor disk, blade, drum, high-pressure compressor rotor, compressor casing, etc., space play arrow fuel storage boxes, arrows motor shell, and the nozzle tube, satellite shell, ship structures, etc.
2. Chemical industry
Because titanium alloy has good corrosion resistance, at this stage has become an irreplaceable ideal structural metal material in the chemical industry, from the initial soda ash and caustic soda industry, to the development of chemical fertilizer, organic synthesis, dye, salt industry, desalination, etc., the chemical industry with titanium accounts for about 50% of all titanium. According to the data, in 2020, the 32 main production enterprises of titanium products in the chemical industry sales reached 47513 tons, accounting for 50.8% of the sales of titanium products.
3, Ship industry
Titanium and titanium alloys are widely used in ship structure parts, pressure hull of deep-sea survey ship and submarine, pipes, valves, rudder, shaft bracket and other ship components. The use of titanium alloys on ships can effectively improve ship tolerance, reliability and effectiveness, especially in pipes, pumps, valves, heat exchangers and other equipment that can be in service for more than 40 years.

Contacts

1.International Sales Department： iedp@xjxrun.com

2.Service Department： iedp@xjxrun.com

FAQ

1.Is there a minimum quantity to order?

Depending on the specific product.

2.Does XRUN professional?

Our team includes a vast array of experts with technical specialism in the titanium industry.Both our main researchers and operators are having years of experience in Titanium industry with high professionalism and expertise.
