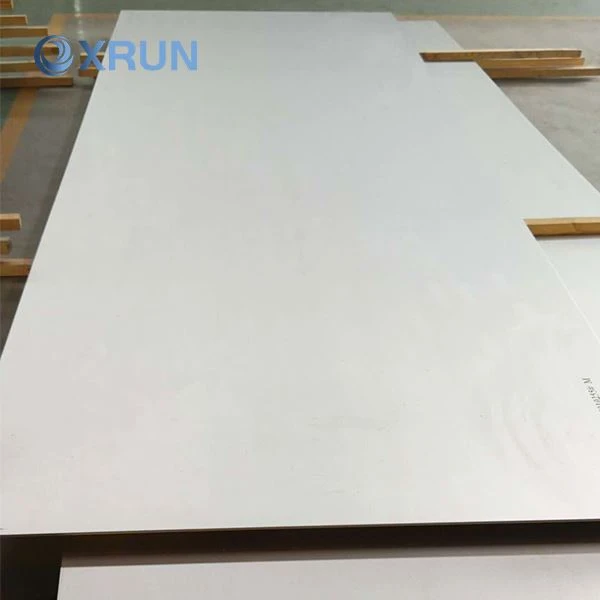

Gr1 Gr2 Gr3 Gr4 Titanium Plate
Grade: GR1 GR2 GR3 GR4
Shape:Flat plate.
Processing method:Rolled
Surface:Pickled,Machined,Ground, Polished
Production system Capacity: 8,000 tons per year
Main Equipments:2.45M 4Hi Reversible Rolling mill
Production process: Titanium sponge - Melting - Forging - Rolling - Packing & Storage
Size Range：(4.0-120) x (800-2250) x L
MOQ: 500 kg
Place of origin: China
Transportation: Ocean, Train, Air
Applications: Aerospace, Industrial, Marine, Petrochemical, Medical Implants, 3C Electronics Industry, Sports etc.
Product Introduction
introduction
Titanium plates (Grades GR1, GR2, GR3, GR4) are high-performance titanium alloy plates with excellent strength-to-weight ratio, corrosion resistance and formability. They are widely used for structural and industrial applications where durability and corrosion resistance are critical.
features
Grade 1 (GR1) Titanium Plate
- Commercially pure titanium with highest purity & lowest strength among the four grades.
- Excellent ductility and formability, easy to bend, stamp, and weld.
- Best-in-class corrosion resistance to oxidizing environments (seawater, many chemicals).
Grade 2 (GR2) Titanium Plate
- Balanced strength, corrosion resistance, and formability - industry's most widely used pure titanium grade.
- Good weldability and fabrication characteristics.
- Maintains excellent performance in heat and oxidizing environments.
Grade 3 (GR3) Titanium Plate
- Higher strength than GR1 and GR2 with moderate ductility.
- Good corrosion resistance and still weldable, though formability is reduced compared to GR2.
Grade 4 (GR4) Titanium Plate
- Strongest of the four pure titanium grades with elevated yield and tensile strength.
- Excellent high-temperature strength and creep resistance among CP titanium grades.
- Still corrosion resistant and weldable, but lower room-temp formability than GR1–GR3.
Product specification
| Product | Specification(mm} | Grade | Standard | Ultrasonic Standard | Grade ofGrain size | Surface Roughness | Tolerance Range |
Plate |
(4.0-120) x (800-2250) x L | Gr1,Gr2,Gr3,Gr4 | ASTM B265 ASME SB265 |
AMS 2631 AMS STD-2154 |
E112 ≥ Grade 6 | 1.6-3.2μm | ASTM B265 ASME SB265 |
applications
Grade 1 (GR1) Titanium Plate
- Chemical process equipment (linings, tanks, fittings).
- Marine components & seawater systems.
- Medical devices & biocompatible parts where purity and formability matter.
- Complex stamped parts and lightweight structural elements.
Grade 2 (GR2) Titanium Plate
- Heat exchangers, piping & pressure vessels in chemical and petrochemical industries.
- Marine hardware & offshore systems.
- General industrial components requiring a reliable balance of strength and corrosion resistance.
Grade 3 (GR3) Titanium Plate
- Aerospace structural components with higher strength requirements.
- Chemical and marine environments where moderate strength is needed.
- Plates and shells in pressure-containing equipment operating at temperatures up to ~300 °C..
Grade 4 (GR4) Titanium Plate
- Aerospace parts and high-performance structural elements.
- Heat exchangers and high-temperature vessels.
- Equipment and components where higher strength and stability are critical under load.
why choose us
Standards & Certifications
Manufactured to recognized international standards (ASTM B265 / ASME SB265) with strict quality controls.
Advanced Manufacturing
High-capacity rolling, machining and finishing equipment to meet large-volume demands.
Customization Capability
Tailored thickness, dimensions, surface finish and processing based on project requirements.
Full Industry Chain
Integrated production from titanium sponge to finished plate ensures consistent quality and cost competitiveness.
Contacts
1.International Sales Department： iedp@xjxrun.com
2.Service Department： iedp@xjxrun.com
FAQ
Q1: Do you provide samples before bulk order?
A1: Yes, samples are available upon request.
Q2: What is the minimum order quantity (MOQ)?
A2: Standard MOQ is typically 500 kg, but negotiable for repeat customers.
Q3: Which surface finishes are offered?
A3: Options include pickled, polished, ground, brushed and mill finishes.
Q4: What packaging and shipping options do you provide?
A4: Secure packaging with export wood cases or steel straps; transport by ocean, rail or air.
Q5: Do you accept third-party inspection?
A5: Yes, independent inspections (e.g., SGS, BV) are welcomed before shipment.
