Grade 23 Titanium Bar

Grade: GR23
Shape:Round,Square,Hexagonal,Profiled
Processing method:Forged/Rolled/Extruded
Surface:Machined,Ground, Polished
Production system Capacity: 10,000 tons per year
Main Equipments:Heating Furnace, 5000T High-speed forging equipment
Production process: Titanium sponge - Melting - Forging - Rolling/Extruding - Packing & Storage
Size Range： Ø(5-400) x L
MOQ:100 kg
Place of origin: China
Transportation: Ocean, Train, Air
Applications: Industrial, Motorsport , Marine, Petrochemical, Medical Implants, 3D Printing, 3C Electronics Industry, Sports etc.

Send Inquiry

Product Introduction

Grade 23 titanium bar can be used in ultra-low temperature environment.XRUN offers a wide range of bar sizes across different grades. Grade 23 includes 6% aluminum, 4% vanadium with extra low interstitial elements . On the basis of GR5, GR23 reduces the content of gap elements C, O, N and impurity elements Fe, and the strength is reduced, but the capacity and toughness of GR23 titanium alloy can be significantly improved. GR23 has good plasticity, toughness, good welding performance and low temperature performance, widely used in cryogenic engineering, medical, ships and aircraft and other important fields.

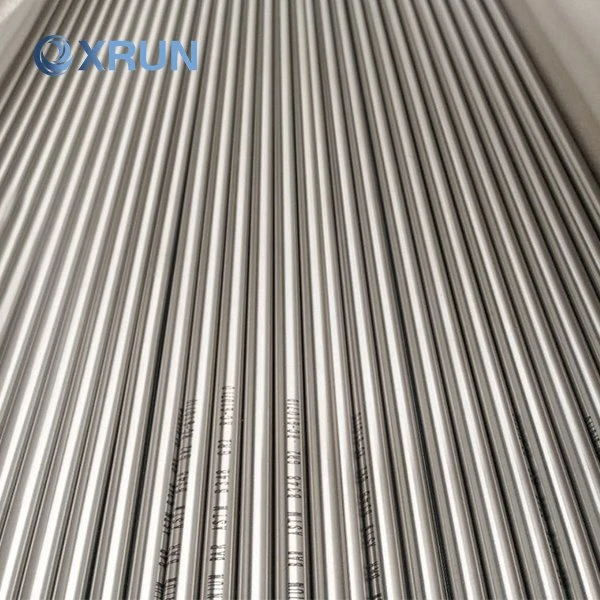

Grade 23 titanium bar

Production processing

Pressing the electrode after titanium sponge and intermediate alloy are mixed. Then, using vacuum plasma welding box to weld the electrode to guarantee there is no inclusion and external pollution risk. The next step is carrying out three times VAR melting to get high clean and uniform ingot. The 5000T High-speed forging equipment is used for several times forging process with large deformation to effectively break the grain. Lastly, Grade 23 titanium bar is finished by rolling or extrusion.

Quality guarantee

All Grade 23 titanium bars are 100% inspected with advanced producting technique to get the high quality and low price.The tolerance will be tested according to standard's required or specific requirement by customer. AMS 2631 & AMS STD-2154 are be used for ultrasonic test.

Medical implants application

GR23 titanium alloy is used to manufacture artificial joint, bone plate and screw for bone and joint injury caused by trauma and tumor in human body, which has been widely used in clinic. It is also used for hip joint (including femoral head), knee joint, elbow joint, mandible, artificial vertebral body, cardiac pacemaker shell, artificial heart (heart-shaped valve), artificial dental implant, titanium nickel tooth orthodontic device and titanium mesh in cranium plastic, etc.

Clinical medicine, surgical implantation, medical equipment manufacturing in the human body due to trauma, tumor caused by bone, joint injury, using titanium and titanium alloy to manufacture artificial joints, bone plates and screws, has been widely used in clinical. It is also used for hip joint (including femoral head), knee joint, elbow joint, mandible, artificial vertebral body (spinal orthosis), heart pacemaker shell, artificial heart (heart-shaped valve), artificial dental implant, titanium nickel orthodontic device and titanium mesh in cranial plastic, etc.

Product specification

Product	Specification(mm)	Grade	Standard	Ultrasonic Standard	Grade of Microstructure	Surface Roughness	Tolerance Range
Billet, Bar & Rod	Ø(5-400) x L	GR23	ASTM B348 ASME SB348 ASTM F67 ASTM F136	AMS 2631 AMS STD-2154	ETTC2 A1-A9	1.6-3.2μm	H6-H11
