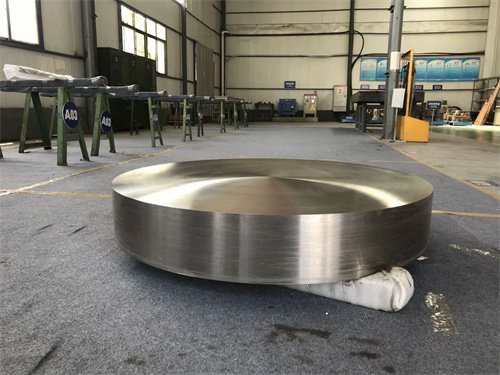

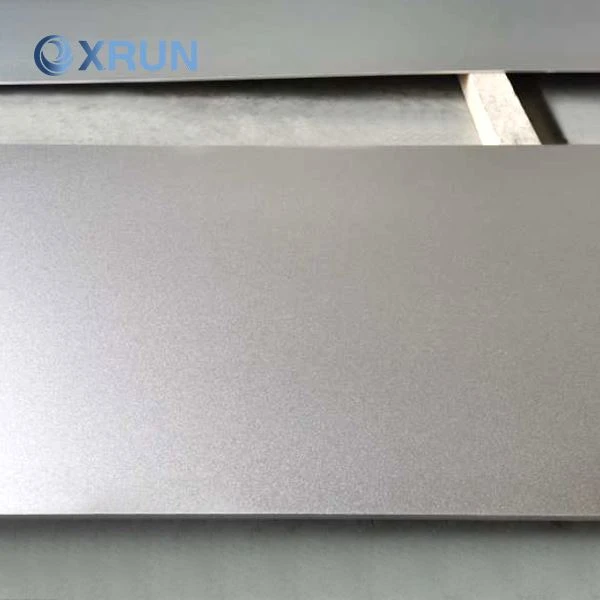

Gr16 Titanium Plate

Gr16 Titanium Plate belongs to titanium palladium alloy, light weight, and has strong crevice corrosion resistance and hydrogen absorption ability, is an important corrosion resistant titanium alloy, widely used in petroleum, chemical and metallurgical fields.

At the same time, as an alloy with excellent corrosion resistance formed in acidic media with the addition of a small amount of precious metal Pd pure titanium, it will become a high-quality material to replace pure titanium and Ti-6Al-4V applied in biomedical implants because of the non-toxic aspects of the presence of elements and V.

Grade 16 is identical to Grade 7 with the exception that the palladium added to improve corrosion resistance is less than with Grade 7.Mechanical and phusical properties,specifications and forms are all identical to those Grade 7.

The manufacturing process is: after mixing the titanium sponge and intermediate alloy, the electrode is pressed. Then vacuum plasma welding box is used to weld the electrode to ensure there is no inclusion and external pollution risk. The next step is carrying out three times VAR melting to obtain high clean and uniform ingot. After that the 5000T High-speed forging equipment is used for several times forging process with large deformation to effectively break the grain. Finally, Gr16 Titanium Plate is obtained by rolling .

Corrosion behavior of Gr16 Titanium Plate in chlorine medium：

In a variety of metal materials, titanium in wet chlorine, chloride solution and other media is the most corrosion resistant, becauseThis has been widely used. Titanium in the chlorine gas to produce severe corrosion, and even cause fire and spontaneous combustion. The boundary between "dry" and "wet" depends on factors such as ambient temperature and alloy composition. According to the data reported abroad, the lowest water content of industrial pure titanium in chlorine gas at ~200℃ to maintain the blunt state is about 1.5%, and at the usual temperature, as long as the lowest water content is maintained at 0.3-0.4%, it will not cause fire. The Gr16 titanium plate can maintain the blunt state of the metal at lower water content.

What is the corrosion resistance of titanium in alkali?

Titanium has strong corrosion resistance in alkali and alkaline media. Whether sodium hydroxide, potassium hydroxide, or ammonia, calcium hydroxide, magnesium hydroxide, are very corrosion resistant. The corrosion rate of titanium in boiling water saturated with calcium hydroxide, magnesium hydroxide and ammonia is almost zero. In high temperature and high concentration sodium hydroxide solution, such as 50% ~ 73% solution at 188℃, the corrosion rate may exceed 1.09mm/A. Nevertheless, the hydrogen embrittlement sensitivity of titanium in alkaline solution at high temperature cannot be ignored. When the temperature exceeds 77℃ and the pH value of the alkali solution is greater than 12, special attention should be paid to the possibility of hydrogen absorption and hydrogen embrittleness of titanium in the alkali solution

Product specification

Contacts

1.International Sales Department： iedp@xjxrun.com

2.Service Department： iedp@xjxrun.com

FAQ

1.Can we supply Grade 16 Titanium plate? Yes

2.Are you a manufacturer or trader? Manufacturer

3.Is there a minimum quantity to order?

Depending on the specific product.

4.Contact channel?

Email, phone, Wechat, Facebook, Linkin, WhatsApp, Instagram

5.What products can we make？Titanium, Zirconium, Nickel and its Alloy products.
