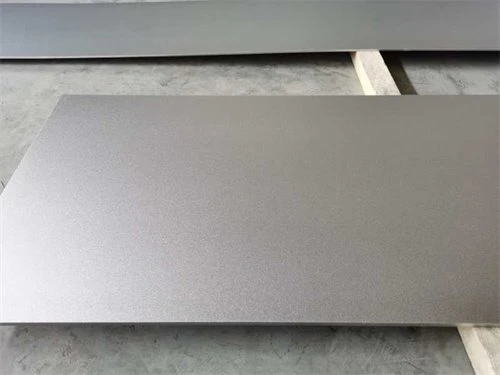

Grade 12 Titanium Plate

Grade 12 Titanium Plate (Ti-0.3Mo-0.8Ni) is a kind of corrosion resistance titanium alloy, is to improve the pure titanium gap corrosion performance and the development of near α alloy, the alloy contains 0.3%Mo and 0.8%Ni, not only strengthen the alloy, and high temperature, low PH value chloride or weak reducing acid has good gap corrosion performance, its corrosion resistance is significant Better than pure titanium and close to Gr7 alloy. Gr12 alloy also has good process plasticity and welding performance, which has been widely used in chemical industry.

Gr12 titanium alloy belongs to one of the α titanium alloy, with good corrosion resistance, high temperature resistance, wear resistance, creep resistance and other performance advantages, suitable for long-term work in the environment of 350~500℃, and good matching degree of strength and stiffness with composite materials, combined with its high specific strength and high temperature performance, has a good application prospect. This alloy improves the corrosion resistance in reducing media and maintains the corrosion resistance of industrial pure titanium to nitric acid, chromic acid and other oxidizing media. Gr12 titanium alloy has been widely used in engine manufacturing, petroleum machinery, nuclear industry and corrosion resistant vessels.

Grade 12 Titanium Plate has an "excellent" rating due to its high quality weldability. It is a highly durable alloy that provides great strength at high temperatures. The alloy can be hot or cold formed using pressing, hydroforming, drawing or drop hammer methods. Its ability to form in a variety of ways makes it useful in many applications. The alloy's high corrosion resistance also makes it invaluable for manufacturing equipment where crevice corrosion is considered.

mechanical property :

Tensile strength σ B (MPa) : ≥520

Yield strength σ 0.2 (MPa) : ≥205

Elongation δ5 (%) : ≥40

reduction of area (%):≥50

Hardness: ≤187HB;≤90HRB;≤200HV

Application area:

1.Pure titanium GR.1, GR.2 and GR.12 are the most commonly used brands in vacuum salt production. After years of development, the four-effect vacuum method has been mature and optimized in the salt industry. The primary effect heating chamber has high heating intensity, high corrosion degree and easy scaling, which has great constraints on salt production. Therefore, titanium molybdenum nickel titanium TA10 alloy material is mostly selected, while pure titanium is more used in II, III and IV effect heating chamber. The optimized production process has the advantages of good corrosion resistance, thermal conductivity and no scaling, and effectively avoids the blockage of the heating tube. Secondly, under the application of traditional materials, the heating chamber is easy to occur corrosion perforation phenomenon, while pure titanium surface impurities, corrosion resistance is strong, not prone to the above failure and low efficiency phenomenon, and under the same heat transfer performance, titanium heating chamber has the advantages of lighter weight than steel tube heating chamber, small volume

2.Grade 12 Titanium Plate is more and more widely used in engine manufacturing, petroleum machinery, nuclear industry and corrosion resistant containers and other fields. Meanwhile, it is widely used in explosive composite plate, fuel storage tank, heat exchanger and all kinds of corrosion resistant evaporator.

Product specification

Contacts

1.International Sales Department： iedp@xjxrun.com

2.Service Department： iedp@xjxrun.com

FAQ

1.Can we supply Grade 12 Titanium plate? Yes

2. Do we accept the third party inspection? Yes

3. Which seaports can we usually ship from? Depend on the customers’ needs

4.Are you a manufacturer or trader? Manufacturer

5.What products can we make？Titanium, Zirconium, Nickel and its Alloy products.
